About the laboratory
The in-situ laboratory transparent building envelope at the Rosenheim University of Applied Sciences serves
- teaching thermal and visual comfort in buildings
- the implementation of research and development projects
- product development within the framework of bachelor's and master's theses
Areas of activity
Energy and building physics investigations
- In situ investigations of heat, light and climate data of the building envelope
- Energetic and physical behaviour of transparent facades
- Solar heating / cooling loads
- Humidity
- Facade-integrated ventilation and air-conditioning units
- Influence of building control and control strategies on indoor comfort and energy consumption
Investigations of visual comfort in buildings
- Sun and glare protection
- Visual contact with the environment
- Daylighting and lighting quality
Equipment
Measurement Equipment
- Test box with 13 m x 5.5 m x 6 m
•adjustable azimuth
•adjustable elevation angle

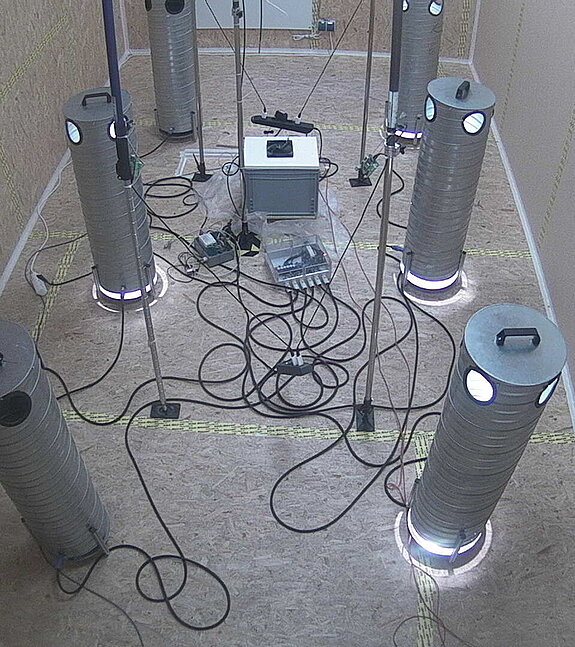

- 3 identical test rooms for comparative investigations with 10 m²
- Facade openings of 3 m x 4 m individually adaptable
- Metrological performance profile
►Evaluation of thermal comfort
Creation of temperature profiles according to EN ISO 7726
Air flows in the room and at the workplace
Radiation symmetry at the workplace
Determination of the predicted mean vote on the room climate
(PMV) and the predicted percentage of dissatisfied (PPD) according to EN ISO 7730 according to EN ISO 7730
•Thermal parameters
Heat transfer coefficient (U-value)
Total energy transmittance (g-value)
•Energetic quality
Solar energy input and required cooling energy also taking into account edge and surface reflections
Savings potential of artificial lighting current through daylight-dependent regulation
Potential savings of artificial luminous flux through light-directing sunshades
•Visual comfort
Glare rating (Daylight Glare Probability DGP according to WIENOLD, Daylight Glare Index DGI according to IES)
Examination of daylight supply according to DIN 5034-5
quantitative (distribution) and quantitative (quantity)
Projects
Research projects / Student work
- FKZ: 03ET1144C: Development of test methods to standardise the energy evaluation of large-format, transparent building systems under in situ boundary conditions.
The LWF facade test stand was documented in the course of this research project and the quality of the envelope of the test boxes and the facade elements was examined using statistical methods.
- Studies were carried out as part of an IEA research project on in-situ measurement methods and a number of final theses were produced.
- The test stand is used for research and development as well as for training young engineers.
